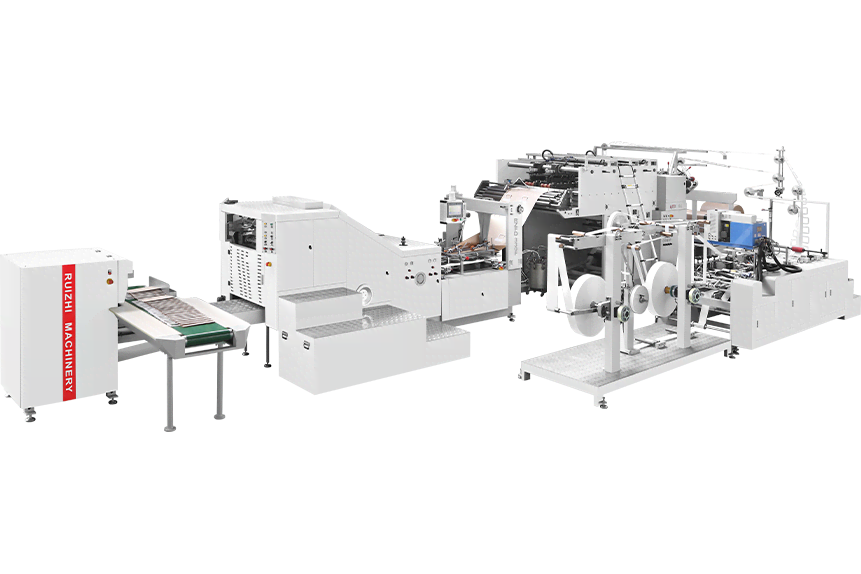

RZFD-330F with Flat Handle Inline
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

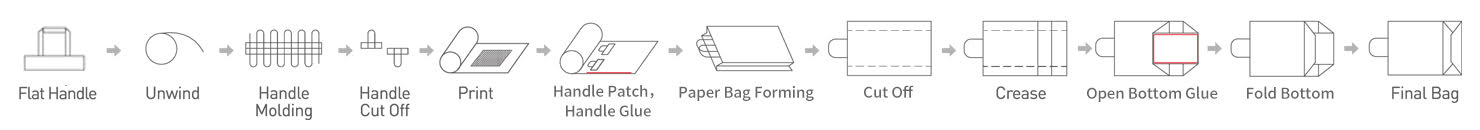

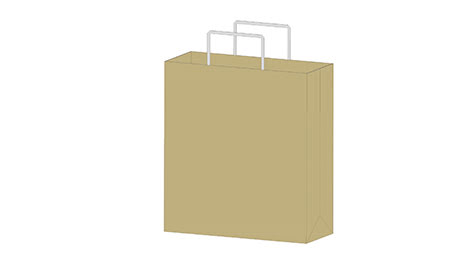

Paper Bag Forming Drawing
Specifications
|
Model |
RZFD-330F |
|
Cutting Length |
270-530mm |
|
Cutting Length |
270-430mm |
|
Bag Width |
120-330mm |
|
Bag Width |
200-330mm |
|
Bottom Width |
80-180mm |
|
Paper Thickness |
60-150g/㎡ |
|
Paper Thickness |
80-150g/㎡ |
|
Paper Roll Width |
380-1050mm |
|
Paper Roll Width |
570-1050mm |
|
Paper Core Inner Diameter |
76mm |
|
Roll Paper Diameter |
1300mm |
|
Flat Rope Distance |
78mm |
|
Flat Rope Width |
12mm |
|
Flat Rope Height |
100mm |
|
Patch Width |
50mm |
|
Patch Length |
152mm |
|
Flat Rope Length |
352mm |
|
Patch Feeding Width |
100mm |
|
Material Thickness |
120g/㎡ |
|
Handle Roll Diameter |
1200mm |
|
Production Speed for Bags without Handles |
30-220pcs/min |
|
Bring the Speed of the Handle |
30-150pcs/min |
|
Cutting Type |
Sawtooth Cutting |
|
Machine Power |
380V 3 (phase) 4 (wire) 41.5kW |
|
Machine Weight |
16000kg |
|
Machine Size |
14000×6000×2400mm |
