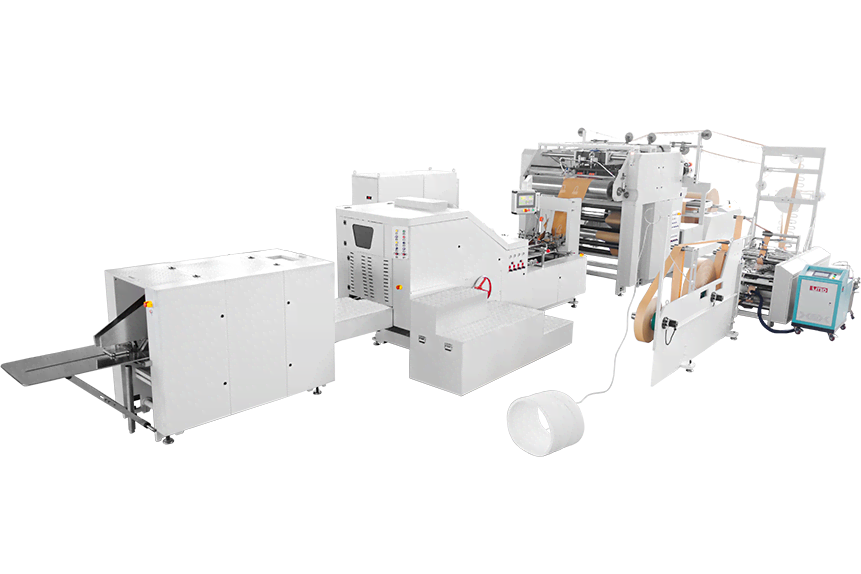

RZFD-250T with Twisted Handle Inline

RZFD-250T with Twisted Handle Inline
1.Uses a French SCHNEIDER touch screen human-computer interface, enhancing the machine's operability and control efficiency.
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

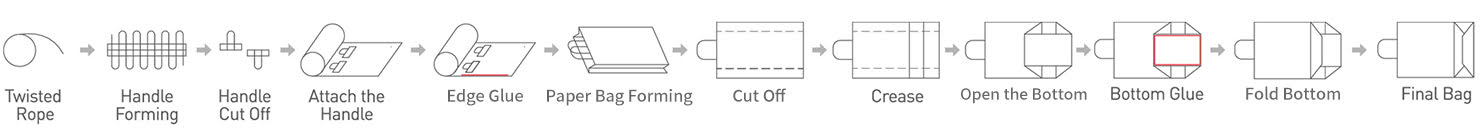

Paper Bag Forming Drawing

Sample Bags

Specifications

Model

RZFD-250T

Cutting Length

240-470mm

Cutting Length

240-370mm

Bag Width

110-250mm

Bag Width

120-250mm

Bottom Width

60-150mm

Paper Thickness

50-150g/

Paper Thickness

80-150g/

Paper Roll Width

370-830mm

Paper Roll Width

380-830mm

Roll Paper Diameter

1300mm

Paper Core

76mm

Patch Length

95mm

Patch Paper Roll Width

80-100mm

Patch Width

40-50mm

Patch Paper Roll Diameter

1200mm

Handle Distance

55mm

Patch Paper Thickness

100-135g/

Rope Diameter

3-5mm

Mechanical Speed

30-150pcs/min

Cutting Knife

Sawtooth Cutting

Machine Power

380V 3 (phase) 4 (wire) 41.5kW

Machine Weight

15000kg

Machine Size

14000×6000×2400mm
