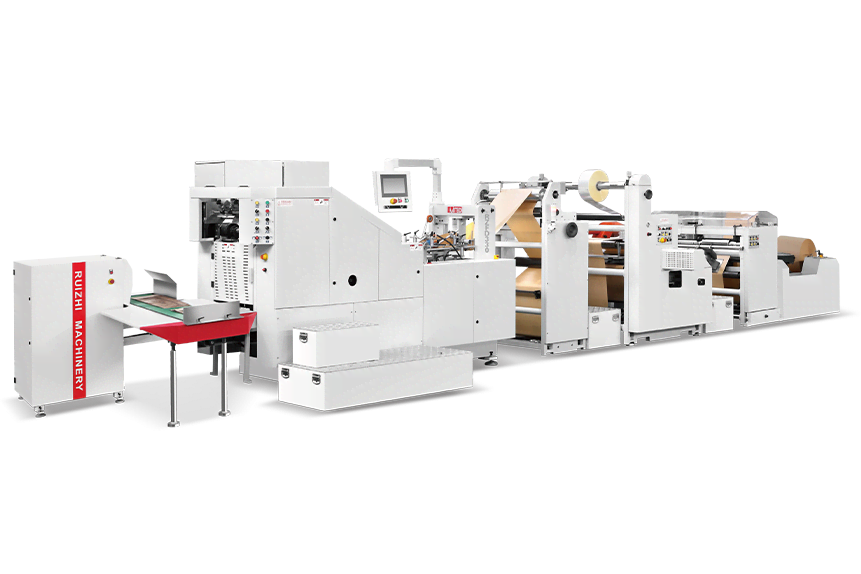

RZFD-330 with Window
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

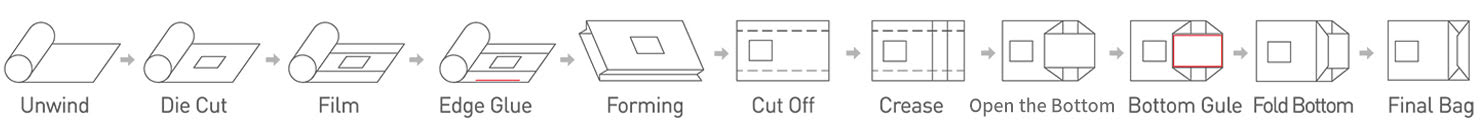

Paper Bag Forming Drawing
Specifications
|
Model |
RZFD-330W |
|
Cutting Length |
270-530mm |
|
Paper Bag Width |
120-330mm |
|
The Hole Width |
40-120mm |
|
The Hole Height |
40-120mm |
|
Paper Bag Bottom Width |
70-180mm |
|
Paper Thickness |
80-150g/㎡ |
|
Paper Bag Speed |
30-150pcs/min |
|
Paper Roll Width |
400-1040mm |
|
Strip Window Size |
60-120mm |
|
Roll Paper Diameter |
1200mm |
|
Machine Power |
380V 3 (phase) 4 (wire) 36kW |
|
Machine Weight |
10800kg |
|
Machine Size |
16100×4200×2050mm |
