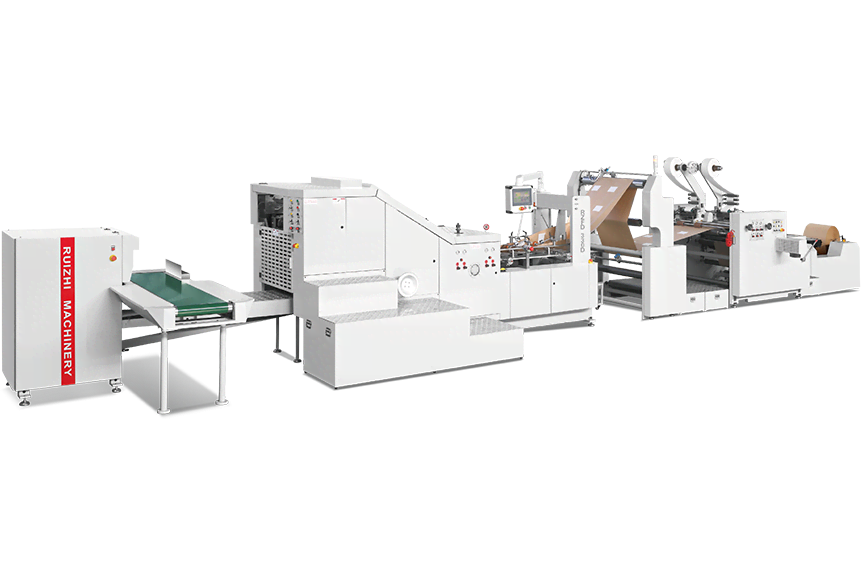

RZFD-330 with D-cut
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

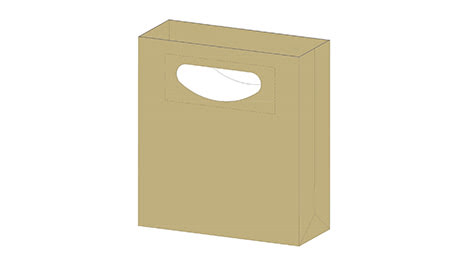

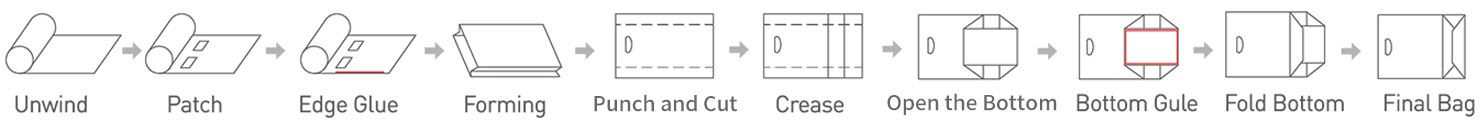

Paper Bag Forming Drawing
Specifications
|
Model |
RZFD-330D |
|
Cutting Length |
270-530mm |
|
Bag Width |
120-330mm |
|
Bottom Width |
70-180mm |
|
Paper Thickness |
80-150g/㎡ |
|
Paper Bag Speed |
30-220pcs/min |
|
Patch Bag Width |
190-330mm |
|
Patch Handle Length |
75/85mm |
|
Paige Bag Paper Thickness |
80-150g/㎡ |
|
Paige Bag Film Thickness |
40-70μm |
|
Paige Bag Roll Width |
130mm |
|
Paige Bag Roll Straight |
500mm |
|
Patch Bag Speed |
30-150pcs/min |
|
Paper Roll Width |
400-1040mm |
|
Roll Paper Diameter |
1200mm |
|
Machine Power |
380V 3 (phase) 4 (wire) 40.58kW |
|
Machine Weight |
11800kg |
|
Machine Dimension |
16000×4200×2100mm |
