RZFD-330 with Printing Inline
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

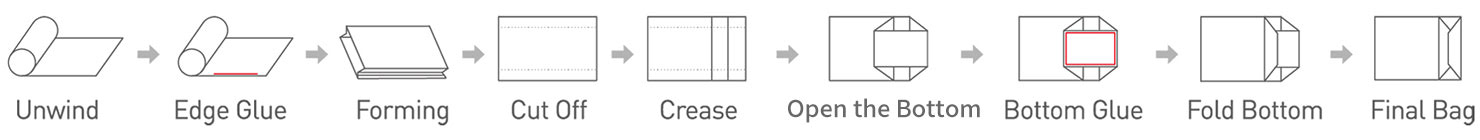

Paper Bag Forming Drawing
Specifications
|
Model |
RZFD-330 |
|
|
Cut Bag Length |
270-530mm |
10.6-20.9in |
|
Print the Length of the Cut Bag |
270-525mm |
10.6-20.5in |
|
Paper Bag Width |
120-330mm |
4.7-13in |
|
Paper Bag Bottom Width |
70-180mm |
2.8-7.1in |
|
Paper Thickness |
60-150g/㎡ |
|
|
Machine Speed |
30-220pcs/min |
|
|
Paper Bag Speed |
30-180pcs/min |
|
|
Paper Roll Width |
380-1050mm |
15-41.3in |
|
Roll Paper Diameter |
1200mm |
47in |
|
Inner Diameter of Paper |
76mm |
3in |
|
Cutting Knife |
Sawtooth Cutting |
|
|
Printing Area |
||
|
Print Paper Roll Width |
380-1050mm |
15-41.3in |
|
Printing Length |
270-520mm |
10.6-20.5in |
|
Printing Speed |
10-100m/min |
|
|
Color Accuracy |
≤±0.20mm |
|
|
Plate Thickness |
2.28mm+0.38mm |
|
|
Working Air Current |
More than 0.36cubic meter/min, 0.5-0.8MPa |
|
|
(with Printing Press)Machine Power |
380V 3（phase) 4（wire) 23.2kW |
|
|
(with Printing Press)Total Weight |
10500kg |
|
|
(with Printing Press)Machine Dimesion |
12500×3920×2500mm |
492×154×98in |
Related Questions
Q:What is the purpose of this RFQ?
A:The RFQ aims to obtain specific quotes and details regarding after-sales service for the paper bag machine.
Q:What basic company information should I provide?
A:Please include your company name, the contact person's name, phone number, and email address.
Q:What equipment information do I need to specify?
A:Please provide the model of the paper bag machine, its production capacity, and the types of paper it can handle.
Q:What does the installation service cover?
A:Installation service typically includes the setup and adjustment of the equipment.
Q:What's included in the training service?
A:Training typically involves instructing operators on how to use the machine, and it's important to specify the content and duration.
Q:What about regular maintenance services?
A:Inquire whether they offer regular maintenance and how frequently it is scheduled.
Q:What's the response time for faults?
A:It's important to understand how quickly they will respond if the machine breaks down.
Q:How is remote support provided?
A:Find out the methods they use for remote tech support, such as phone or online assistance.
Q:What's the supply time for spare parts?
A:Inquire about the lead time for obtaining spare parts and their pricing.
Q:Is there an upgrade service for the equipment?
A:Inquire whether they offer upgrades or modifications for the machine and the associated costs.
Q:What's the customer feedback process like?
A:Ask how they gather and manage customer feedback.
Q:What are the main terms of the service agreement?
A:Confirm the specific terms and conditions outlined in the service agreement.
Q:Does the customer have any special service requests?
A:Verify if there are specific service quality expectations from the customer.
