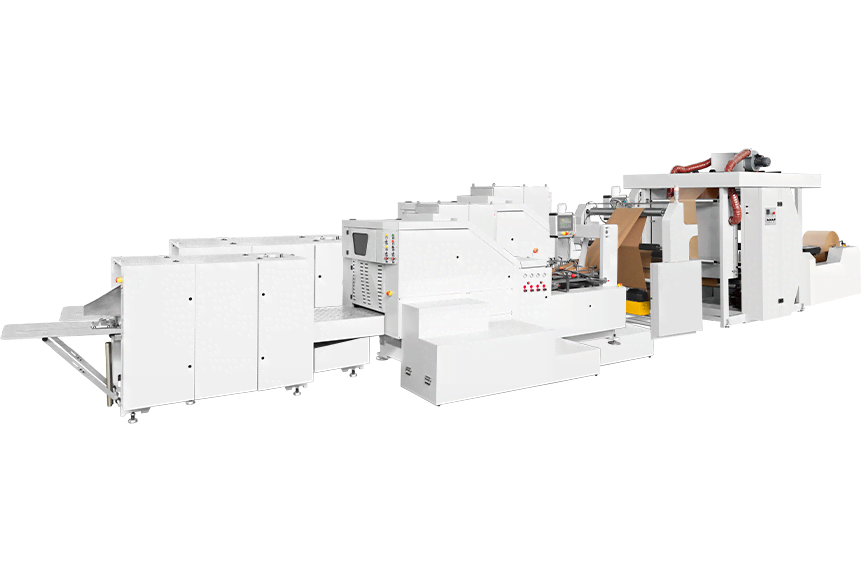

RZFD-250 with Printing Inline
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

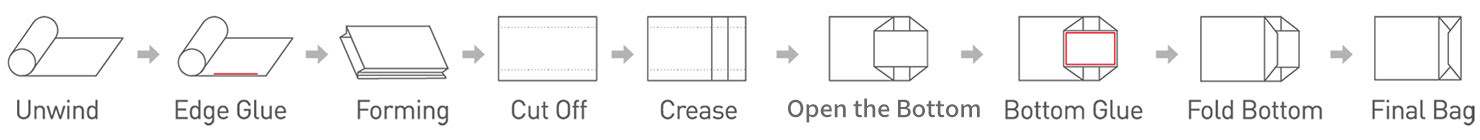

Paper Bag Forming Drawing
Specifications
|
Model |
RZFD-250 |
|
|
Cut Bag Length |
240-470mm |
9.8-18.5in |
|
Print the Length of the Cut Bag |
240-465mm |
9.8-18.1in |
|
Paper Bag Width |
110-250mm |
4.3-9.8in |
|
Paper Bag Bottom Width |
60-150mm |
2.4-5.9in |
|
Paper Thickness |
50-150g/㎡ |
|
|
Machine Speed |
30-260pcs/min |
|
|
Paper Bag Speed |
30-230pcs/min |
|
|
Paper Roll Width |
370-830mm |
14.6-32.7in |
|
Roll Paper Diameter |
1300mm |
51in |
|
Inner Diameter of Paper |
76mm |
3in |
|
Cutting Knife |
Sawtooth Cutting |
|
|
Printing Area |
||
|
Print Paper Roll Width |
370-830mm |
14.6-32.7in |
|
Printing Length |
230-500mm (Two Bags within 190-230mm) |
9.1-19.7in (Two Bags within 190-230mm) |
|
Printing Speed |
5-86m/min |
|
|
Color Accuracy |
≤±0.20mm |
|
|
Plate Thickness |
2.28mm+0.38mm |
|
|
Working Air Current |
More than 0.36cubic meter/min, 0.5-0.8MPa |
|
|
(with Printing Press)Machine Power |
380V 3（phase) 4（wire) 20kW |
|
|
(with Printing Press)Total Weight |
10000kg |
|
|
(with Printing Press)Machine Dimesion |
12000×3500×2800mm |
472×138×110in |
