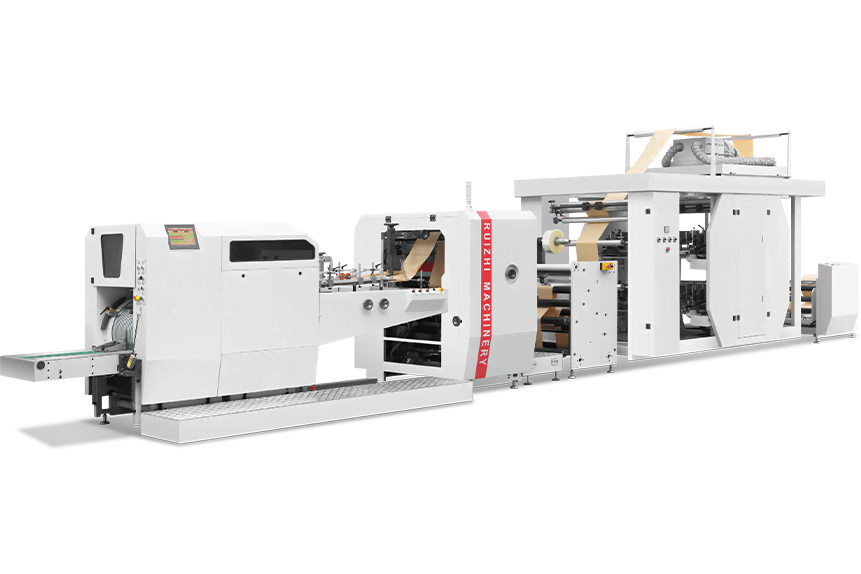

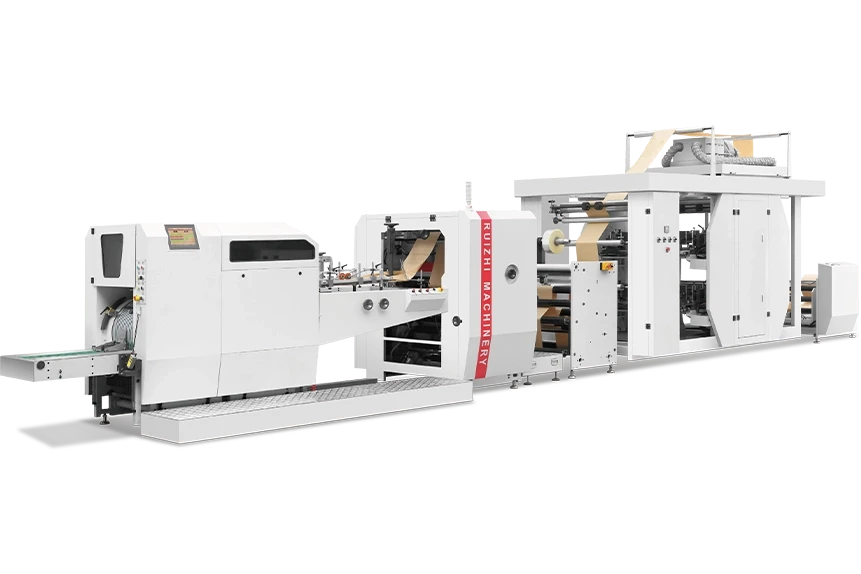

G350J with Printing Inline
2.RZJD-G350J using the British TRlO Motion Controller (PC), customized using the Germany LENZE Motion Controller (PC), through the integration with the optical fiber to ensure high-speed operation and stability.
3.Raw materials China correction using Taiwan Pasource, reduce the roll adjustment time alignment.
4.Using the Japanese Original YASKAWA servo motor with the German original SICK photoelectric eye correction, accurate tracking printing bag size.
5.The raw material loading and unloading adopts the pneumatic cylinder lifting structure, the roll adopts the full automatic constant tension control.

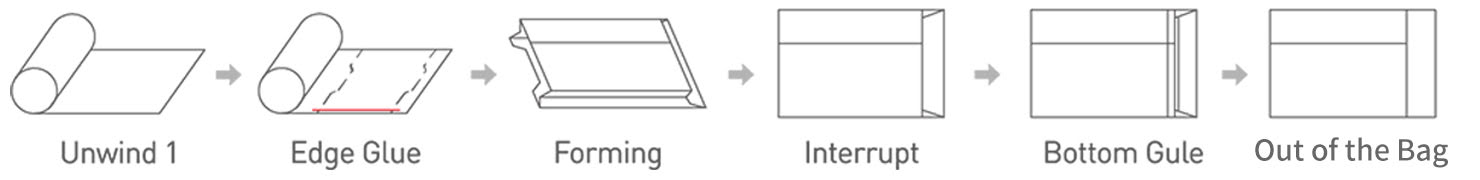

Paper Bag Forming Drawing
Specifications
|
Model |
RZJD-G350J |
|
Length of Cutting Bag |
165-715mm |
|
Paper Bag Length |
160-710mm |
|
Paper Bag Width |
70-320mm |
|
Insert Size |
20-120mm |
|
Bag Mouth Height |
15/20mm |
|
Paper Bag Speed |
50-650pcs/min |
|
Paper Feed Width |
200-920mm |
|
Paper Material Diameter |
1000mm |
|
Inner Diameter of Paper |
76mm |
|
Paper Material Thickness |
35-80g/㎡ |
|
Printing Area |
|
|
Printing Width |
100-1000mm |
|
Printing Length |
240-800mm |
|
Printing Speed |
10-150m/min |
|
Color Accuracy |
≤±0.20mm |
|
Plate Thickness |
2.28mm+0.38 |
|
Working Air Current |
More than 0.36cubic meter/min, 0.5-0.8MPa |
|
Machine Power |
380V 3 (phase) 4 (wire) 40.3kW |
|
Total Weight |
10000kg |
|
Machine Dimesion |
12000×2200×2800mm |
