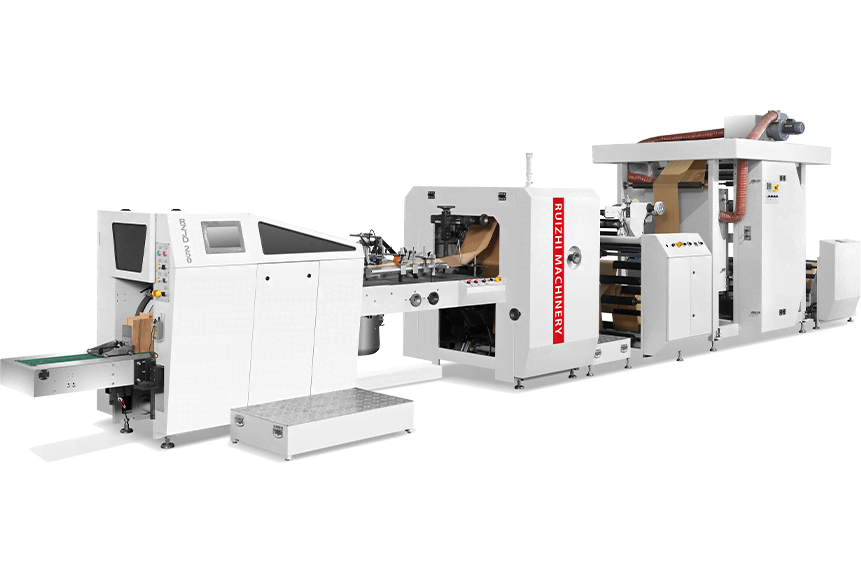

G250J with Printing Inline

G250J with Printing Inline
1.Using the French SCHNElDER touch screen man-machine interface, operating at a glance, easy to control.
2.RZJD-G250J using the British TRlO Motion Controller (PC), customized using the Germany LENZE Motion Controller (PC), through the integration with the optical fiber to ensure high-speed operation and stability.
3.Raw materials China correction using Taiwan Pasource, reduce the roll adjustment time alignment.
4.Using the Japanese Original YASKAWA servo motor with the German original SICK photoelectric eye correction, accurate tracking printing bag size.
5.The raw material loading and unloading adopts the pneumatic cylinder lifting structure, the roll adopts the full automatic constant tension control.

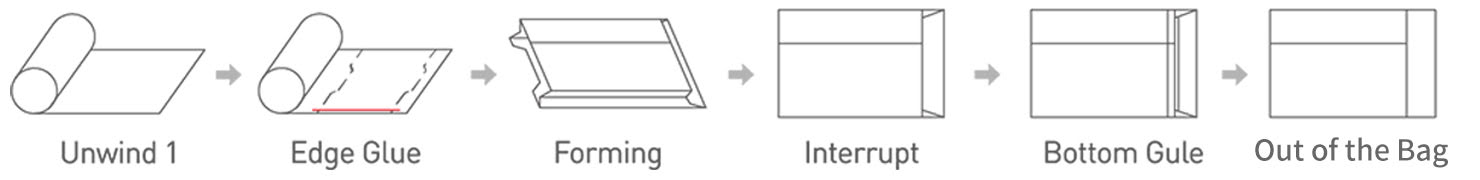

Paper Bag Forming Drawing

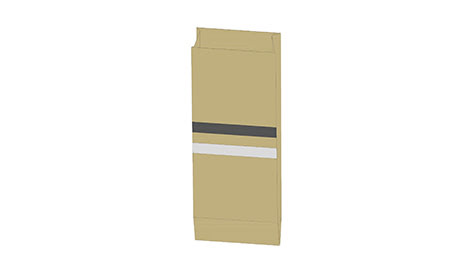

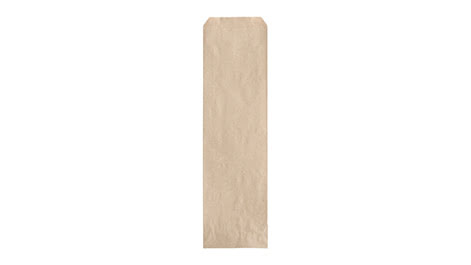

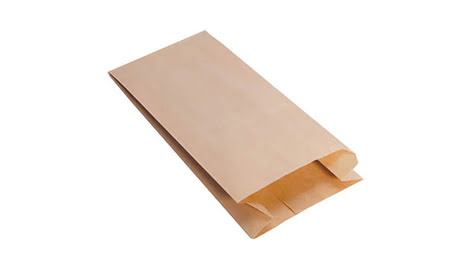

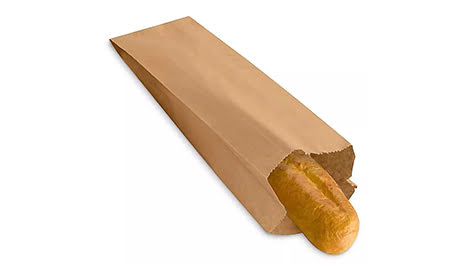

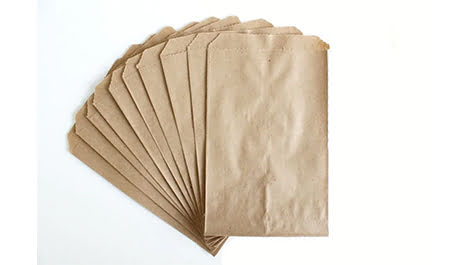

Sample Bags

Specifications

Model

RZJD-G250J

Length of Cutting Bag

110-460mm

Paper Bag Length

100-450mm

Paper Bag Width

70-250mm

Insert Size

20-120mm

Bag Mouth Height

15/20mm

Paper Bag Speed

50-320pcs/min

Paper Feed Width

160-780mm

Paper Material Diameter

1000mm

Inner Diameter of Paper

76mm

Paper Material Thickness

35-80g/

Printing Area

Printing Width

100-760mm

Printing Length

100-600mm

Printing Speed

10-120m/min

Color Accuracy

≤±0.20mm

Plate Thickness

2.28mm+0.38

Working Air Current

More than 0.36cubic meter/min, 0.5-0.8MPa

Machine Power

380V 3 (phase) 4 (wire) 32.2kW

Total Weight

7000kg

Machine Dimesion

10200×2800×2500mm
