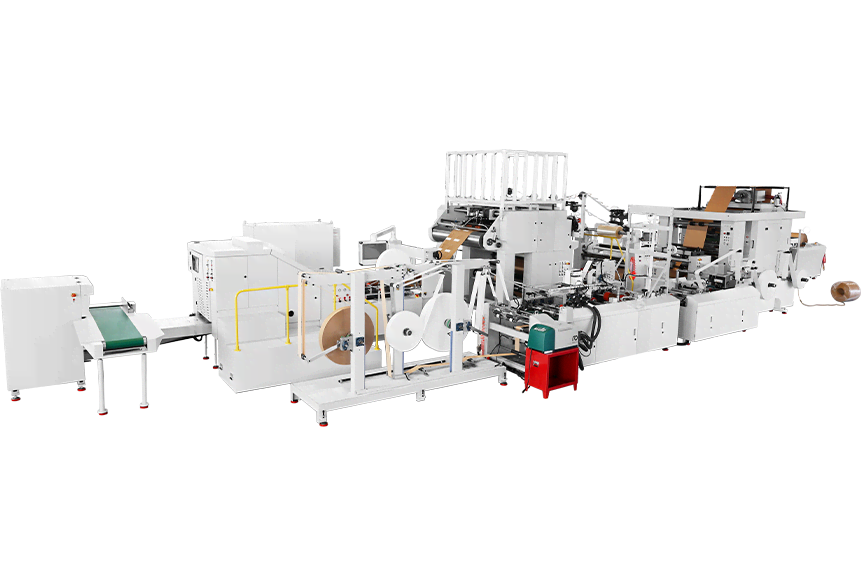

RZFD-450ATF Twisted & Flat Rope Handle & Printing
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

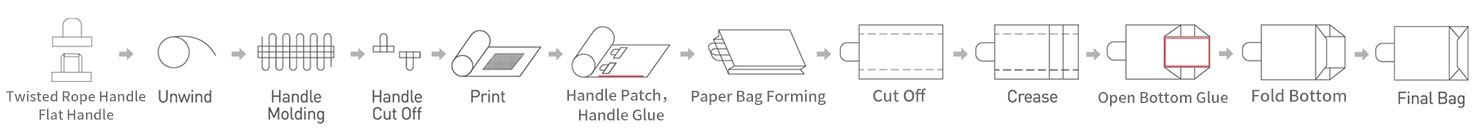

Paper Bag Forming Drawing
Specifications
|
Model |
RZFD-450ATF |
|
Cutting Length |
300-630mm |
|
Cutting Length |
300-530mm |
|
Bag Width |
220-450mm |
|
Bag Width |
240-450mm |
|
Bottom Width |
90-200mm |
|
Paper Thickness |
80-150g/㎡ |
|
Paper Thickness |
80-150g/㎡ |
|
Paper Roll Width |
640-1320mm |
|
Paper Roll Width |
680-1320mm |
|
Roll Paper Diameter |
1300mm |
|
Paper Core |
76mm |
|
Patch Length |
190mm |
|
patch Width |
50mm |
|
Handle Length |
340mm |
|
Handle Distance |
95mm |
|
Rope Diameter |
3-5mm |
|
Patch Paper Roll Width |
100mm |
|
patch Paper Roll Diameter |
1200mm |
|
Patch Paper Thickness |
100-135g/㎡ |
|
Machine Speed |
30-180pcs/min |
|
Production Speed for Bags without Handles |
30-150pcs/min |
|
Production Speed for Bags with Handles |
30-130pcs/min |
|
Flat Rope Making Machine Requirements |
|
|
Flat Rope Distance |
84mm |
|
Flat Rope Width |
12mm |
|
Flat Rope Height |
100mm |
|
Patch Width |
40-50mm |
|
Patch Length |
190mm |
|
Flat Rope Length |
352mm |
|
Patch Feeding Width |
80-100mm |
|
Material Thickness |
120g/㎡ |
|
Handle Roll Diameter |
1200mm |
|
Paper Bag with Flat Rope Speed |
30-90pcs/min |
|
Paper Bag Speed |
30-150pcs/min |
|
Cutting Knife |
Sawtooth Cutting |
|
Printing Area |
|
|
Printing Width |
100-1260mm |
|
Printing Length |
270-800mm |
|
Printing Speed |
10-100m/min |
|
Color Accuracy |
≤±0.20mm |
|
Plate Thickness |
2.28mm+0.38mm |
|
Working Air Current |
More than 0.36cubic meter/min, 0.5-0.8MPa |
|
Machine Weight |
24000kg |
|
Machine Size |
18000×8000×2800mm |
|
Machine Power |
380V 3 (phase) 4 (wire) 58kW |
