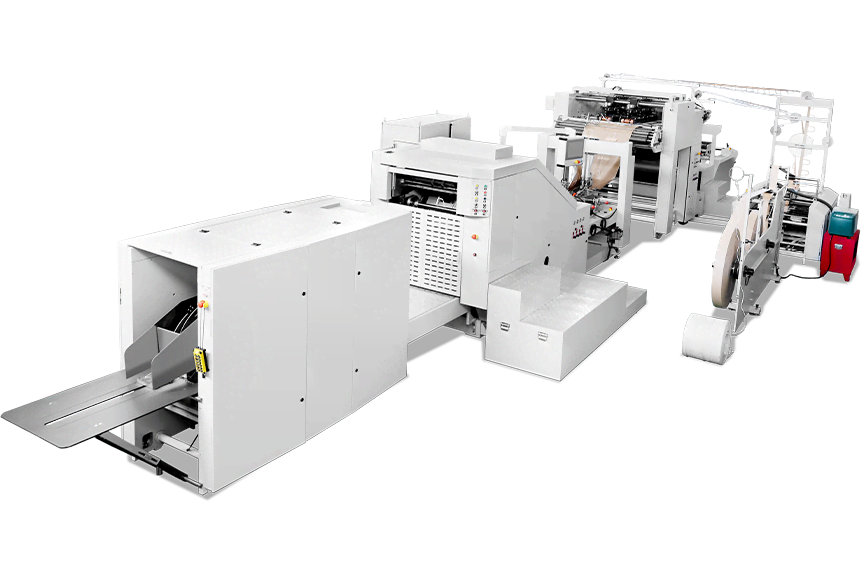

RZFD-450AT Twisted Rope Handle & Printing Inline

RZFD-450AT Twisted Rope Handle & Printing Inline
1.Uses a French SCHNEIDER touch screen human-computer interface, enhancing the machine's operability and control efficiency.
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

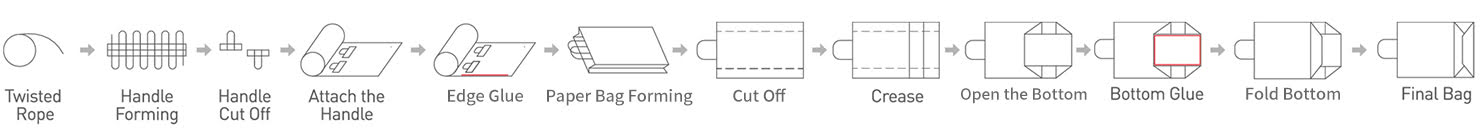

Paper Bag Forming Drawing

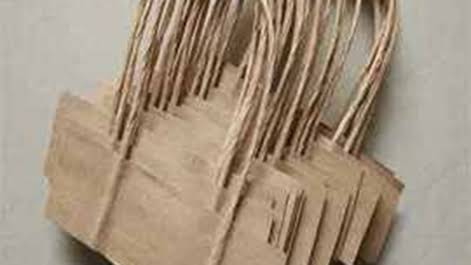

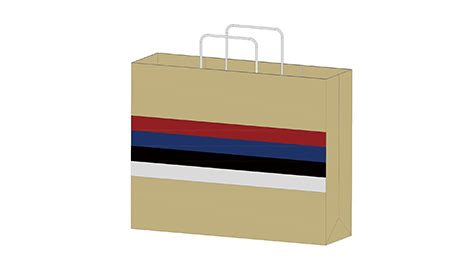

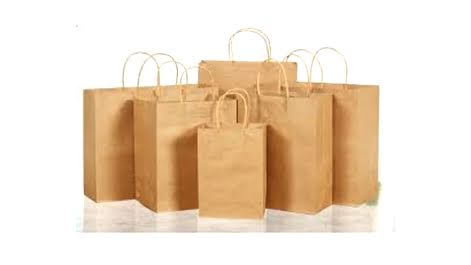

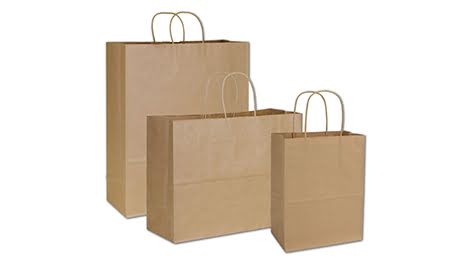

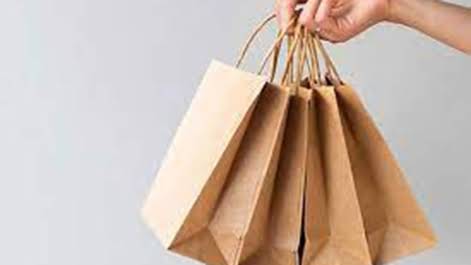

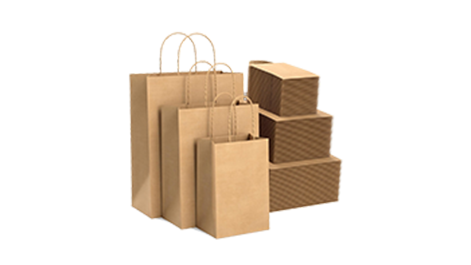

Sample Bags

Specifications

Model

RZFD-450AT

Cutting Length

300-630mm

Cutting Length

300-530mm

Bag Width

220-450mm

Bag Width

240-450mm

Bottom Width

90-200mm

Paper Thickness

80-150g/

Paper Thickness

80-150g/

Paper Roll Width

640-1320mm

Paper Roll Width

680-1320mm

Roll Paper Diameter

1300mm

Paper Core

76mm

Patch Length

190mm

patch Width

50mm

Handle Length

340mm

Handle Distance

95mm

Rope Diameter

3-5mm

Patch Paper Roll Width

100mm

Patch Paper Roll Diameter

1200mm

Patch Paper Thickness

100-135g/

Machine Speed

30-200pcs/min

Production Speed for Bags without Handles

30-180pcs/min

Production Speed for Bags with Handles

30-150pcs/min

Cutting Knife

Sawtooth Cutting

Printing Area

Printing Width

100-1260mm

Printing Length

270-800mm

Printing Speed

10-100m/min

Color Accuracy

≤±0.20mm

Plate Thickness

2.28mm+0.38mm

Working Air Current

More than 0.36cubic meter/min, 0.5-0.8MPa

Machine Weight

19500kg

Machine Size

18500×6500×2700mm

Machine Power

380V 3 (phase) 4 (wire) 55kW

Related Questions

Q:What is the purpose of this RFQ?

A:The RFQ aims to obtain specific quotes and details regarding after-sales service for the paper bag machine.

Q:What basic company information should I provide?

A:Please include your company name, the contact person's name, phone number, and email address.

Q:What equipment information do I need to specify?

A:Please provide the model of the paper bag machine, its production capacity, and the types of paper it can handle.

Q:What does the installation service cover?

A:Installation service typically includes the setup and adjustment of the equipment.

Q:What's included in the training service?

A:Training typically involves instructing operators on how to use the machine, and it's important to specify the content and duration.

Q:What about regular maintenance services?

A:Inquire whether they offer regular maintenance and how frequently it is scheduled.

Q:What's the response time for faults?

A:It's important to understand how quickly they will respond if the machine breaks down.

Q:How is remote support provided?

A:Find out the methods they use for remote tech support, such as phone or online assistance.

Q:What's the supply time for spare parts?

A:Inquire about the lead time for obtaining spare parts and their pricing.

Q:Is there an upgrade service for the equipment?

A:Inquire whether they offer upgrades or modifications for the machine and the associated costs.

Q:What's the customer feedback process like?

A:Ask how they gather and manage customer feedback.

Q:What are the main terms of the service agreement?

A:Confirm the specific terms and conditions outlined in the service agreement.

Q:Does the customer have any special service requests?

A:Verify if there are specific service quality expectations from the customer.
