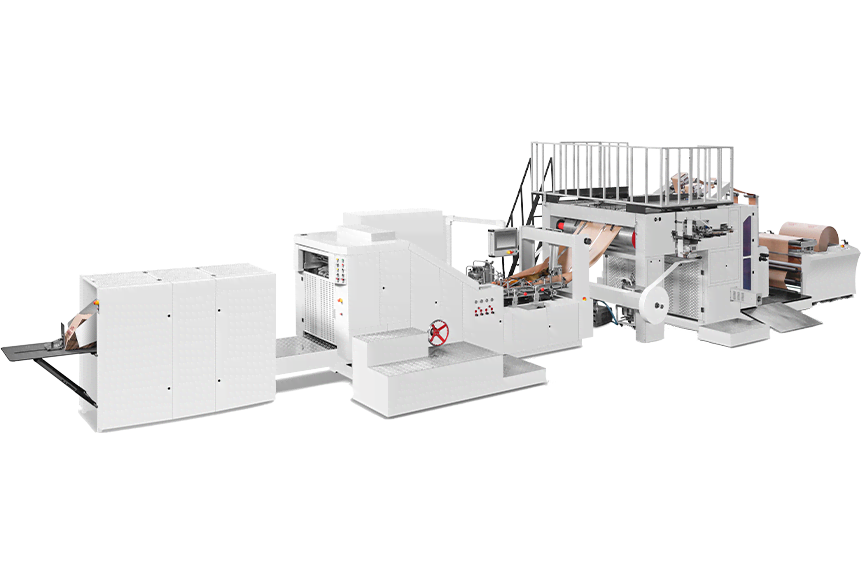

RZFD-450A(IF)

RZFD-450A(IF)
1.Uses a French SCHNEIDER touch screen human-computer interface, enhancing the machine's operability and control efficiency.
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

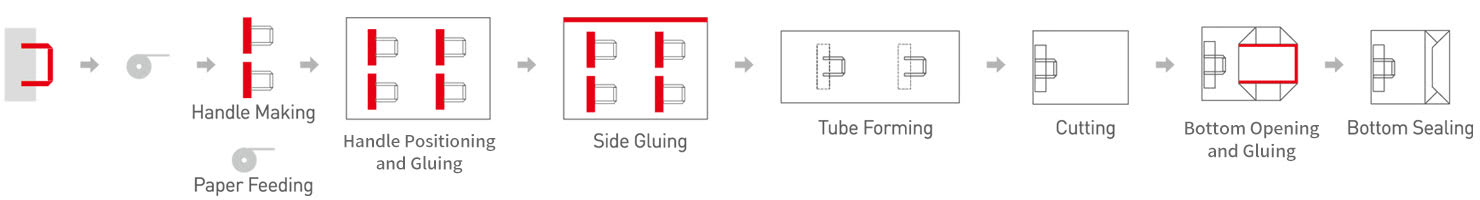

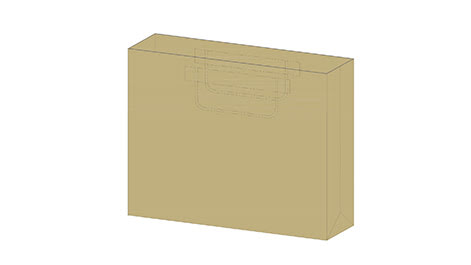

Paper Bag Forming Drawing

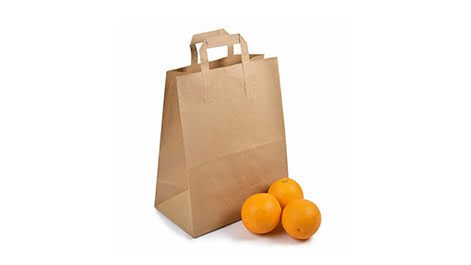

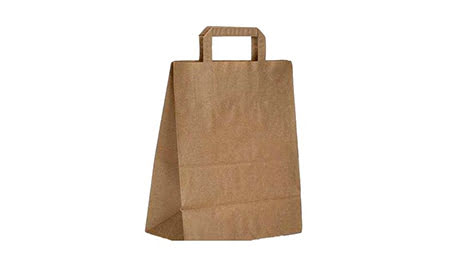

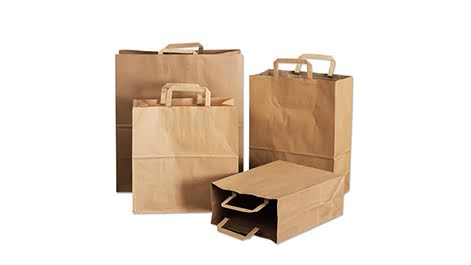

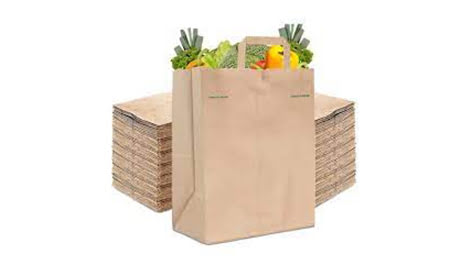

Sample Bags

Specifications

Model

RZFD-450AIF

Cutting Length

300-630mm

Cutting Length

300-630mm

Cutting Length

300-530mm

Bag Width

220-450mm

Bottom Width

90-200mm

Paper Thickness

80-150g/

Paper Roll Width

630-1370mm

Roll Paper Diameter

1300mm

Paper Core

76mm

Patch Length

160mm

Patch Width

52mm

Handle Paper Patch Basis Weight

100-110g

Handle Flat Rope Width

12mm

Handle Flat Rope Height

75mm

Handle Distance

100mm

Handle Flat Rope Cut Length

310mm

Patch Paper Thickness

80g/

Rope Diameter

1200mm

Paper Bag Speed

30-150pcs/min

Paper Bag Speed

30-120pcs/min

Machine Power

380V 3 (phase) 4 (wire) 38.5kW

Machine Weight

23000kg

Machine Size

16500×4700×3080mm
