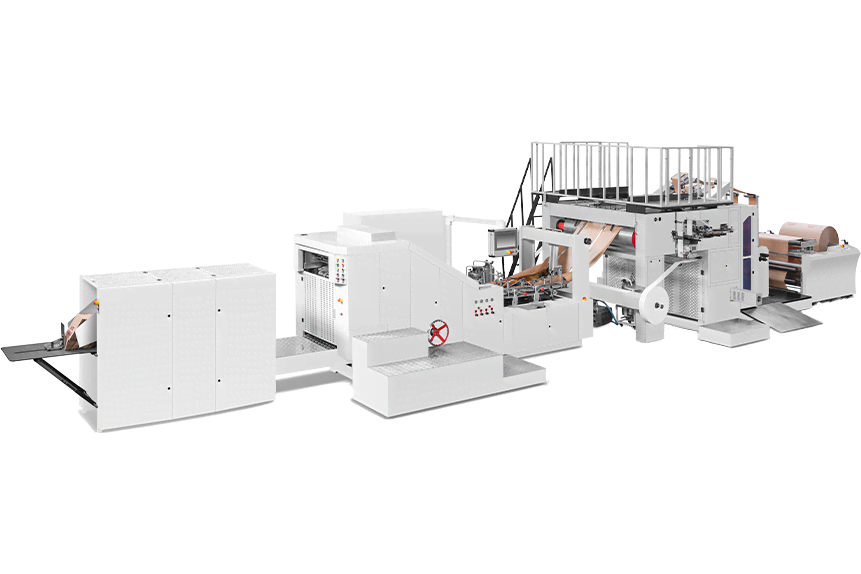

RZFD-330(IF)
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

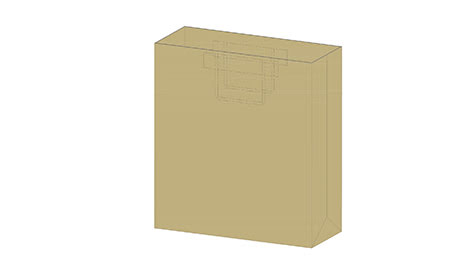

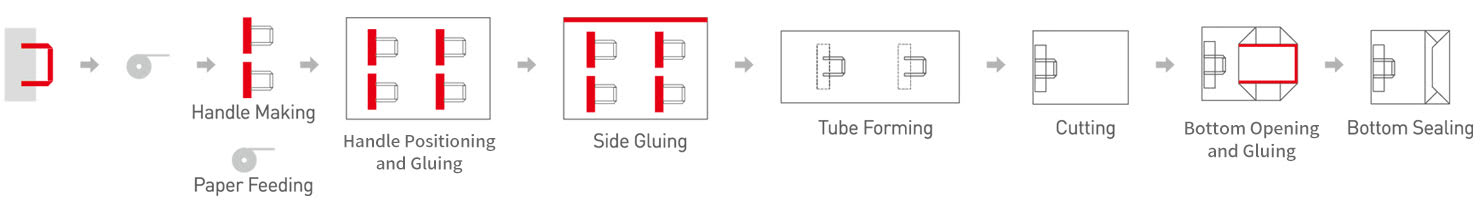

Paper Bag Forming Drawing
Specifications
|
Model Min Cutting Length Change when Doing Bag with Handle:10mm |
RZFD-330IF |
||
|
Cutting Length |
without Handle |
C |
270-530mm |
|
exposed Handle |
C+ |
270-430mm |
|
|
infolding Handle |
C+ |
300-530mm |
|
|
Bag Width |
without Handle |
W |
120-330mm |
|
with Handle |
W |
220-330mm |
|
|
Bottom Width |
H |
70-180mm |
|
|
Bottom Width |
H |
80-220mm |
|
|
Paper Thickness |
without Handle |
60-150g/㎡ |
|
|
with Handle |
80-150g/㎡ |
||
|
Paper Roll Width |
without Handle |
380-1050mm |
|
|
with Handle |
630-1050mm |
||
|
Paper Roll Diameter |
1300mm |
||
|
Paper Core Inner Diameter |
76mm |
||
|
Patch Length P1 |
160mm |
||
|
Patch Width P2 |
52mm |
||
|
Patch Paper Thickness |
100-110g/㎡ |
||
|
Patch Roll Width |
100mm |
||
|
Patch Roll Diameter |
1200mm |
||
|
Paper Loop Height |
75mm |
||
|
Handle Distance |
100mm |
||
|
Flat Loop Width |
12mm |
||
|
Flat Loop Paper Thickness |
80g/㎡ |
||
|
Rope Diameter |
1200mm |
||
|
Machine Speed |
30-220pcs/min |
||
|
Speed
|
without Handle |
30-220pcs/min |
|
|
with Flat Handle |
30-150pcs/min |
||
|
Machine Power |
380V 3 (phase) 4 (wire) 38kW |
||
|
Machine Weight |
22000kg |
||
|
Machine Dimension |
19000×6000×2700mm |
||
