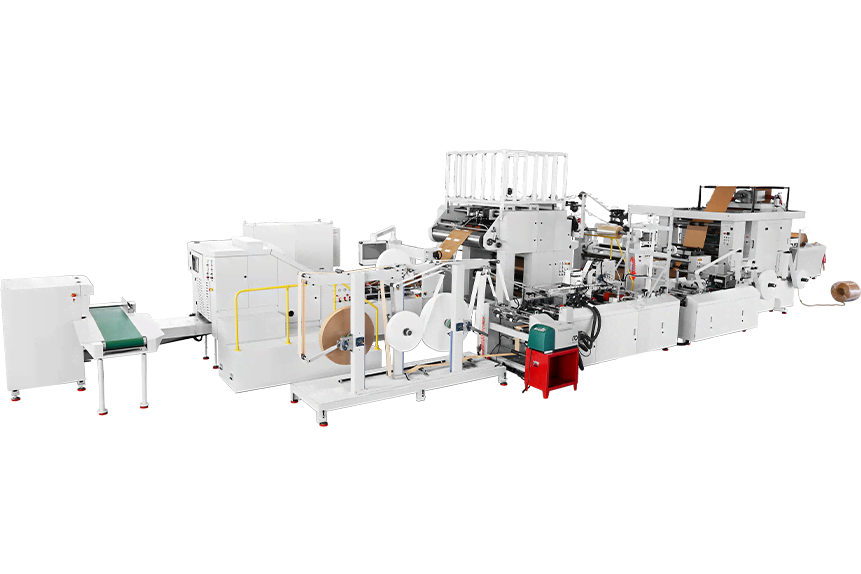

RZFD-550TF with Twisted and Flat Handle Inline
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

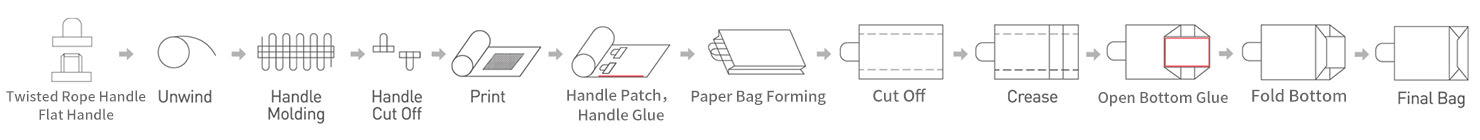

Paper Bag Forming Drawing
Specifications
|
Model |
RZFD-550TF |
|
Cutting Length |
380-760mm |
|
Cutting Length |
380-660mm |
|
Bag Width |
240-550mm |
|
Bag Width |
240-550mm |
|
Bottom Width |
120-300mm |
|
Paper Thickness |
80-160g/㎡ |
|
Paper Thickness |
80-160g/㎡ |
|
Paper Roll Width |
740-1730mm |
|
Paper Roll Width |
740-1730mm |
|
Roll Paper Diameter |
1300mm |
|
Paper Core |
76mm |
|
Patch Length |
190mm |
|
Handle Length |
340mm |
|
Handle Distance |
95mm |
|
Rope Diameter |
3-5mm |
|
Patch Paper Roll Width |
90-100mm |
|
Patch Paper Roll Diameter |
1200mm |
|
Patch Paper Thickness |
100-135g/㎡ |
|
Production Speed for Bags with Handles |
30-110pcs/min |
|

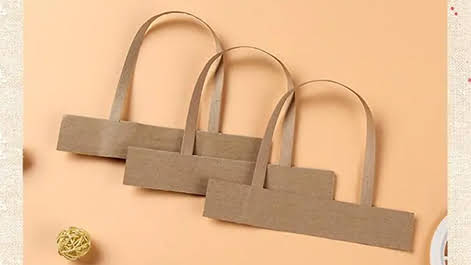

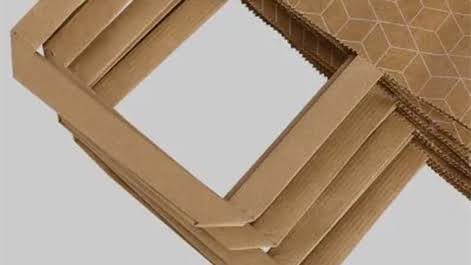

Flat Rope Making Machine Requirements |
|
|
Flat Rope Diastance |
85mm |
|
Flat Rope Width |
12mm |
|
Flat Rope Height |
100mm |
|
Patch Width |
90-100mm |
|
Patch Length |
190mm |
|
Patch Feeding Width |
45/50mm |
|
Material Thickness |
120g/㎡ |
|
Handle Roll Diameter |
1000mm |
|
Machine Speed |
30-150mm |
|
Paper Bag with Flat Rope Speed |
30-110pcs/min |
|
Machine Speed |
30-130pcs/min |
|
Cutting Knife |
Sawtooth Cutting and Flat Cutting |
|
Machine Power |
380V 3 (phase) 4 (wire) 47kW |
|
Machine Weight |
26000kg |
|
Machine Dimension |
19000×10000×2700mm |
