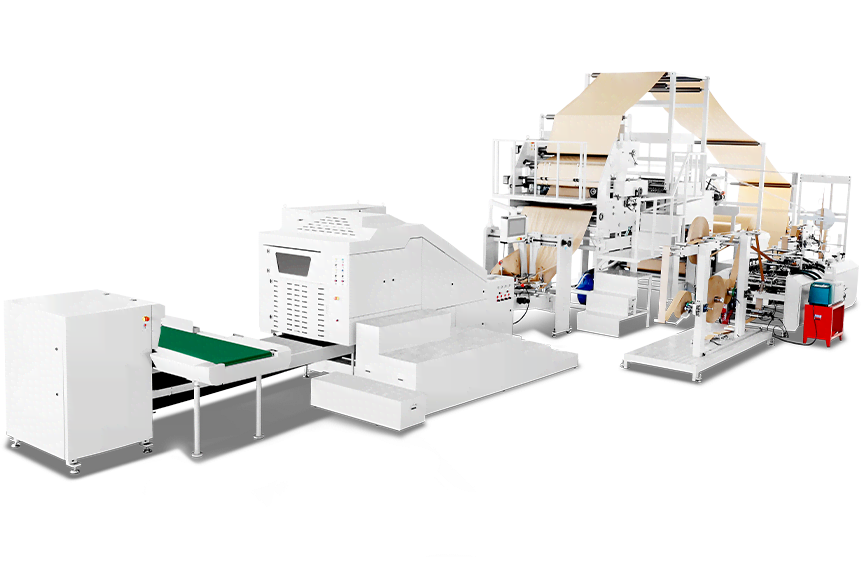

RZFD-550F with Flat Handle Inline

RZFD-550F with Flat Handle Inline
1.Uses a French SCHNEIDER touch screen human-computer interface, enhancing the machine's operability and control efficiency.
2.Utilizes original LENZE PC control from Germany, integrated with optical fiber, ensuring reliable stability and rapid operational speed.
3.Adopts original LENZE servo motors and SICK photoelectric sensors from Germany for accurate tracking and correction of printed bags.
4.The raw material loading system features a hydraulic auto-lifting structure, and the unwind unit includes automatic tension control.
5.The raw material unwinding EPC utilizes the SELECTRA system from Italy, which reduces material alignment time.

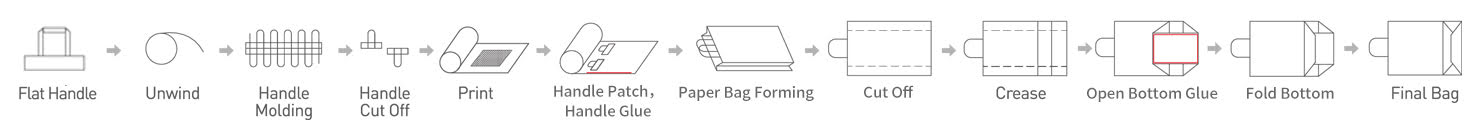

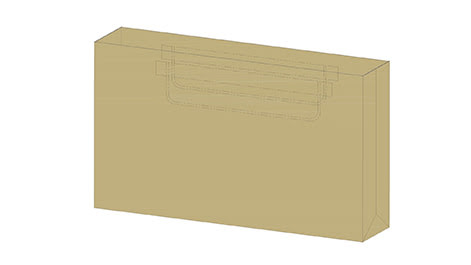

Paper Bag Forming Drawing

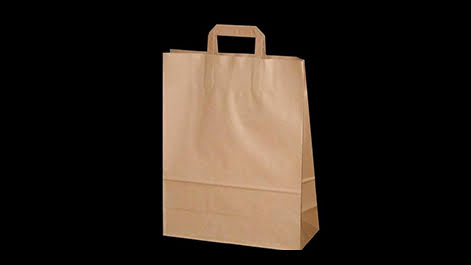

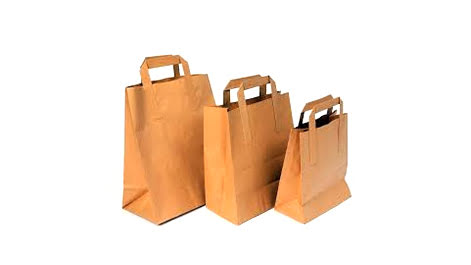

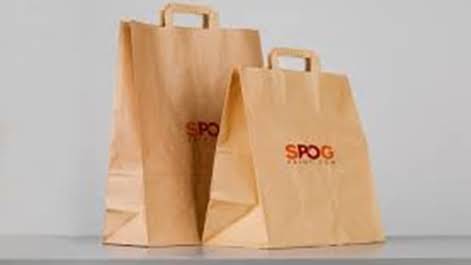

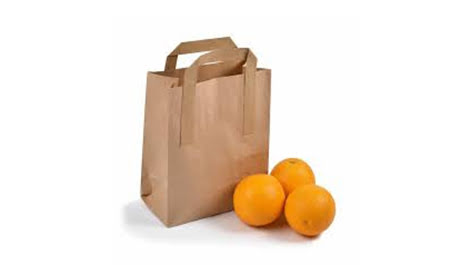

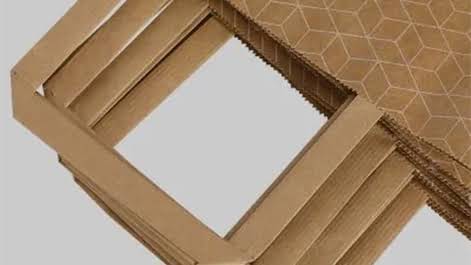

Sample Bags

Specifications

Model

RZFD-550F

Cutting Length

380-760mm

Cutting Length

380-660mm

Bag Width

240-550mm

Bag Width

240-550mm

Bottom Width

120-300mm

Paper Thickness

100-150g/

Paper Thickness

100-150g/

Paper Roll Width

740-1730mm

Paper Roll Width

740-1730mm

Roll Paper Diameter

1300mm

Flat Rope Making Machine Requirements

Flat Rope Distance

85mm

Flat Rope Width

12mm

Flat Rope Height

100mm

Patch Width

90-100mm

Patch Length

190mm

Patch Feeding Width

45/50mm

Material Thickness

120g/

Handle Roll Diameter

1000mm

Machine Speed

30-150mm

Paper Bag with Flat Rope Speed

30-100pcs/min

Machine Speed

30-150pcs/min

Cutting Knife

Sawtooth Cutting

Machine Power

380V 3 (phase) 4 (wire) 47kW

Machine Weight

26000kg

Machine Size

19000×10000×2700mm
