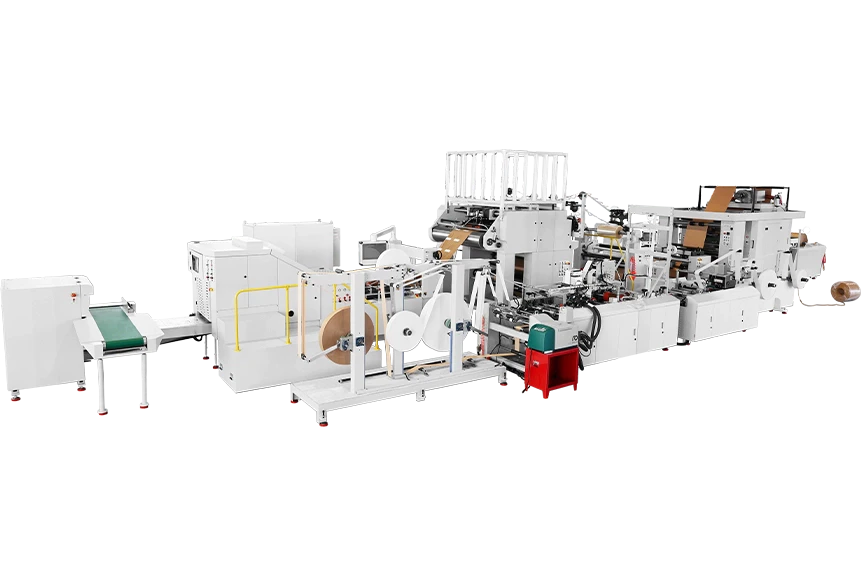

RZFD-450ATF with Twisted and Flat Handle Inline
Quality Assurance
Ruizhi Machinery square bottom paper bag machine, committed to international standards, ensures our equipment delivers unparalleled quality and performance, consistently setting the benchmark in the industry.
High Safety Standards
Ruizhi Machinery square bottom paper bag machine, with a full-cover safety shield and automatic shutdown alarm, ensures safe operation while protecting the product from external interference.
Efficient Production
Ruizhi Machinery square bottom paper bag machine, with its automated production line, produces 120 square bottom paper bags with handle inline per minute, significantly reducing labor costs and enhancing productivity.
Modular Design
Ruizhi Machinery square bottom paper bag machine, with the independent operation and coordination of modules (feeding, forming, and sealing) minimize downtime, streamline production, and ensure fast, efficient paper bag manufacturing.

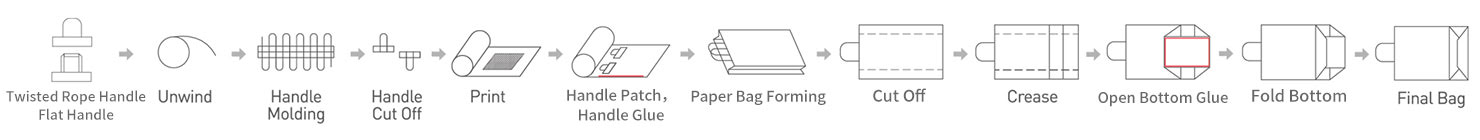

Paper Bag Forming Drawing
Specifications
|
Model |
RZFD-450ATF |
|
Cutting Length |
300-630mm |
|
Cutting Length |
300-530mm |
|
Bag Width |
220-450mm |
|
Bag Width |
240-450mm |
|
Bottom Width |
90-200mm |
|
Paper Thickness |
80-150g/㎡ |
|
Paper Thickness |
80-150g/㎡ |
|
Paper Roll Width |
640-1320mm |
|
Paper Roll Width |
680-1320mm |
|
Roll Paper Diameter |
1300mm |
|
Paper Core |
76mm |
|
Patch Length |
152mm |
|
patch Width |
50mm |
|
Handle Length |
320/340mm |
|
Handle Distance |
75mm |
|
Rope Diameter |
3-5mm |
|
Patch Paper Roll Width |
100mm |
|
Patch Paper Roll Diameter |
1200mm |
|
Patch Paper Thickness |
120g/㎡ |
|
Production Speed for Bags with Handles |
30-150pcs/min |
|
Flat Rope Making Machine Requirements |
|
|
Flat Rope Spacing |
75mm |
|
Flat Rope Width |
12/15mm |
|
Flat Rope Height |
100mm |
|
Patch Width |
50mm |
|
Length of Patch |
152mm |
|
Length of Flat Rope |
352mm |
|
Winding Patch Width |
80-100mm |
|
Paper Weight |
120g/㎡ |
|
Hand Roll Paper |
1200mm |
|
Production Speed for Bags without Handles |
30-130pcs/min |
|
Machine Speed |
30-200pcs/min |
|
Cutting Knife |
Sawtooth Cutting |
|
Machine Power |
380V 3(phase)4(wire) 43kW |
|
Machine Weight |
22000kg |
|
Machine Dimension |
19000×6000×2700mm |
